BW-B2D 250V 10A BW-ABS 9700K Thermostat Temperature Controller
H21
H20.pdf
BW-B2D series thermostat’s Principle and structure

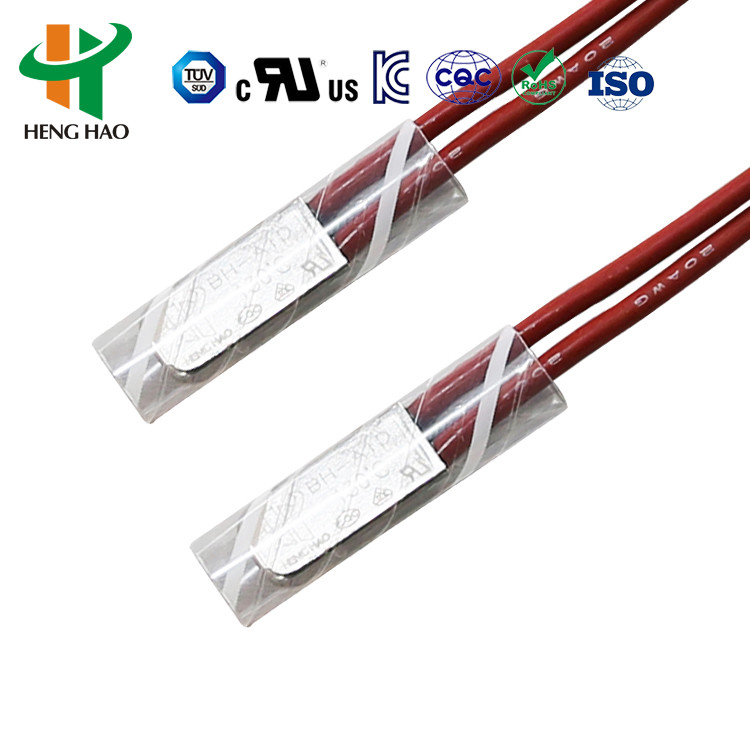

H20,H21serial universal and enhanced protectors with large metal
casing are composed of the thermal conductive metal casing,
bimetallic parts welded with silver alloy contact point, conductive
bracket, insulation fixation stand, fixed contact strip and heat
resistance cable. In case of abnormal operation, along with the
increase of the environment temperature to the set value, the
bimetallic parts perform quick action, open the contact point, and
disconnect the circuit. When the device is cooled to the
temperature for safe operation, the contact point will
automatically closes and recover normal operation.
BW-B2D series thermal protector’s Specification
| Electrical Rating | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A |
| Open temperature | (30~150)±5°C; 5°C a step |
| Reset temperature | 2/3 of the action temperature with tolerance of ±15°C. Reset
temperature can also be provided according to customers'
requirement. |
| Life times | 10000 times |
| Contact Closure resistance: | ≤50mΩ |
| Insulation resistance: | ≥100mΩ |
| Electric strength: | - AC1500V/1min free from phenomena of break down and flashover.
|
| UL File no | E487478 |
| CQC certificate no | CQC16002142880 |
| TUV certificate no | B160592241002 |
BW-B2D series thermal protector’s Dimension
| Model | Case | Length(mm) | width(mm) | High(mm) | Vol.&Current | Lead wire |
| H20 | Plastic | 18.5 | 8 | 4 | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A | #20 3135, end 5mm half tripping, length is 70mm, or according to customer’s require |
| H21 | Metal | 18.5 | 7.3 | 3.8 |
| H21 | Metal | 20 | 8 | 4 | AC250V 20A | #16 3135 |
| BH-A1D | Metal | 15 | 6.6 | 3.2 | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V | #20 3135, #22 3266,#22 3135, end 5mm half tripping, length is 70mm, or according to customer’s require |
| BH-B2D | Plastic | 15 | 7.1 | 3.8 |

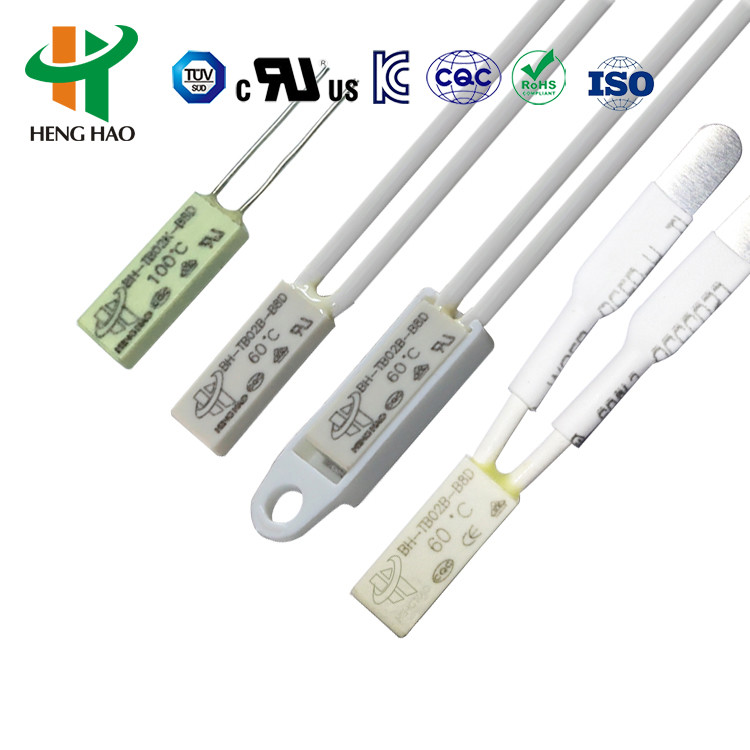

| BH-TB02B-B8D | Plastic | 15 | 5.2 | 2.4 | DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A | 3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70 mm
or according to customer’s require |
BW-B2D series temperature protector’s Application
H20,H21series is applicable to chargeable battery, ballast,
massager, micro motor, transformer, electric tools, heat electric
appliance and instrument etc.
3.1. Manual reset type: Temperature sensing components consist of
bimetallic strip. When the temperature reached the action
temperature range, it will jump quickly and the movable disc
disconnects. When the temperature declines to a fixed temperature
point, the contact point cannot reset until reconnecting the
circuit by pushing the reset button. And then the contact points
recover, reaching a purpose of connecting or disconnecting the
circuit and restarting the circuit by manual reset. (Kindly
reminder: 1.This type of manual reset thermostat can reset when the
temperature declines 20 °C after snap action by pressing the reset
button. And 4~6 N will be advisable; please don’t use too much
strength. 2. To ensure the normal function, the distance between
the reset button and the close cover should not be less than
20.4mm. )
3.2. Manual reset type: Temperature sensing components consist of
bimetallic strip. When the temperature reached the action
temperature range, it will jump quickly and the movable disc
disconnects. When the temperature declines to a fixed temperature
point, the contact point can auto reset and start working.
The product UL,CQC,TUV and RoHS certification approval.
