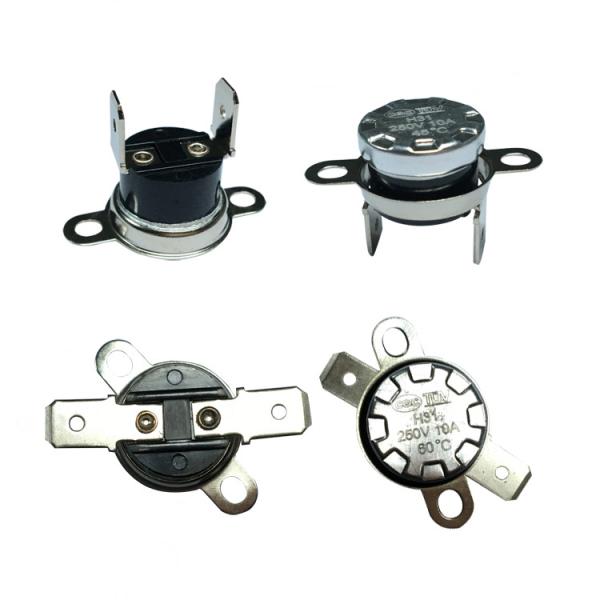

3/4" KSD302 Bimetal Snap Action Thermostat 250VAC

Dongguan Heng Hao Electric Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 3/4" KSD302 Bimetal Snap Action Thermostat 250VAC from wholesalers

    Buy cheap 3/4" KSD302 Bimetal Snap Action Thermostat 250VAC from wholesalers
    • Buy cheap 3/4" KSD302 Bimetal Snap Action Thermostat 250VAC from wholesalers
    • Buy cheap 3/4" KSD302 Bimetal Snap Action Thermostat 250VAC from wholesalers
    • Buy cheap 3/4" KSD302 Bimetal Snap Action Thermostat 250VAC from wholesalers
    • Buy cheap 3/4" KSD302 Bimetal Snap Action Thermostat 250VAC from wholesalers
    • Buy cheap 3/4" KSD302 Bimetal Snap Action Thermostat 250VAC from wholesalers

    3/4" KSD302 Bimetal Snap Action Thermostat 250VAC

    Ask Lasest Price
    Brand Name : HENGHAO
    Model Number : KSD301
    Certification : TUV,UL,CQC
    Price : US$0.2-0.3PER,PC
    Payment Terms : TT FOB SZ
    Supply Ability : 1000000 PCS PER MONTH
    Delivery Time : 7-10 WORKING DAYS
    • Product Details
    • Company Profile

    3/4" KSD302 Bimetal Snap Action Thermostat 250VAC

    3/4" KSD302 Bimetal Thermostat Snap Action 250V Thermostat For Home Appliance


    KSD301 thermostat / bimetal thermal protector / KSD301 temperature protector


    The body can be customized as ceramic.


    Reset mothed: Automatic

    Temperature range: 45-150F adjustable

    Contct Type: SPST NO or NC

    Insulation resistance:More than 100MΩ;

    Service life: 10000 cycle,

    Terminal angle & Reset temperature can be made according to customer's requirment.


    Typical Applications:

    •Water Heater, Laundry, Fire plate, Hair Dryer, Coffee Maker

    •Toaster, Water Dispenser


    Open temperature & reset temperature


    1. According to customer’s request to set the open temperature and reset temperature.

    2. The standard open temperature and reset temperature’s sheet for auto reset type as below


    Open Temp.

    Reset Temp.

    Open Temp.

    Reset Temp.

    Open Temp.

    Reset Temp.

    -20℃+-5℃

    5℃+-5℃

    95℃+-5℃

    80℃+-5℃

    205℃+-5℃

    175℃+-10℃

    -15℃+-5℃

    5℃+-5℃

    100℃+-5℃

    80℃+-10℃

    210℃+-5℃

    180℃+-10℃

    -10℃+-5℃

    5℃+-5℃

    105℃+-5℃

    85℃+-10℃

    215℃+-5℃

    185℃+-10℃

    0℃+-5℃

    -10℃+-5℃

    110℃+-5℃

    90℃+-10℃

    220℃+-5℃

    190℃+-10℃

    5℃+-5℃

    -5℃+-5℃

    115℃+-5℃

    95℃+-10℃

    225℃+-5℃

    195℃+-10℃

    10℃+-5℃

    0℃+-5℃

    120℃+-5℃

    100℃+-10℃

    230℃+-5℃

    200℃+-10℃

    15℃+-5℃

    5℃+-5℃

    125℃+-5℃

    105℃+-10℃

    235℃+-5℃

    205℃+-10℃

    20℃+-5℃

    5℃+-5℃

    130℃+-5℃

    110℃+-10℃

    240℃+-5℃

    210℃+-10℃

    25℃+-5℃

    10℃+-5℃

    135℃+-5℃

    115℃+-10℃

    245℃+-5℃

    215℃+-10℃

    30℃+-5℃

    15℃+-5℃

    140℃+-5℃

    120℃+-10℃

    250℃+-5℃

    220℃+-10℃

    35℃+-5℃

    20℃+-5℃

    145℃+-5℃

    125℃+-10℃

    255℃+-5℃

    225℃+-10℃

    40℃+-5℃

    25℃+-5℃

    150℃+-5℃

    130℃+-10℃

    260℃+-5℃

    230℃+-10℃

    45℃+-5℃

    30℃+-5℃

    155℃+-5℃

    130℃+-10℃

    265℃+-5℃

    235℃+-10℃

    50℃+-5℃

    35℃+-5℃

    160℃+-5℃

    135℃+-10℃

    270℃+-5℃

    240℃+-10℃

    55℃+-5℃

    40℃+-5℃

    165℃+-5℃

    140℃+-10℃

    275℃+-5℃

    245℃+-10℃

    60℃+-5℃

    45℃+-5℃

    170℃+-5℃

    145℃+-10℃

    280℃+-5℃

    250℃+-10℃

    65℃+-5℃

    50℃+-5℃

    175℃+-5℃

    150℃+-10℃

    285℃+-5℃

    255℃+-10℃

    70℃+-5℃

    55℃+-5℃

    180℃+-5℃

    155℃+-10℃

    290℃+-5℃

    260℃+-10℃

    75℃+-5℃

    60℃+-5℃

    185℃+-5℃

    155℃+-10℃

    295℃+-5℃

    265℃+-10℃

    80℃+-5℃

    65℃+-5℃

    190℃+-5℃

    160℃+-10℃

    300℃+-5℃

    270℃+-10℃

    85℃+-5℃

    70℃+-5℃

    195℃+-5℃

    165℃+-10℃



    90℃+-5℃

    75℃+-5℃

    200℃+-5℃

    170℃+-10℃




    The product UL,CQC,VDE and RoHS certification approval.
