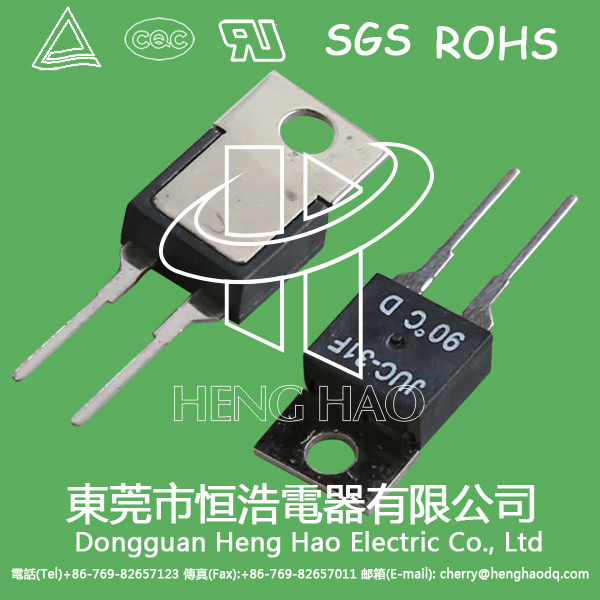

Miniature Bimetal Thermostat JUC-31F Mini Thermal Cut Off Switch TO220 250v 2a 0-130C

JUC-31F thermostat’s Principle and structure

The product is a sensor of belonging to touch type plastic Snap temperature thermostat ,the adoption of international standard package ,the product has high reliability ,sensitive and accurate ,small size ,light weight ,very easy to install and so on , very suitable for PCB circuit board / heat equipment/ power device installed Specification.

JUC-31F min temperature protector’s Application

JUC31F thermostat is applicable to Electric equipment, electric product, household appliance, the protection of temperature control, thermal overload in circuit board, Communication power supply , switching power supply,UPS power supply, medical power supply, fire power ,the module power supply ,audio amplifier equipment, various types of rechargeable devieces, rectifiers, inverters, welding equipment ,aerospace instrumentation electronic equipment , automation equipment ,military, Commercial product temperature control or temperature protection.

JUC-31F thermostat’s specification

1. Contact type: 1D (normally closed), or 1H (normally open)
2. Electrical rating: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
3. Operating temperature range: 0~130°C,error ±3°C ±5°C
4. Reset temperature (difference value with operating temp. ): 8~35°C
5. Environment temperature: -55~+180°C
6. Overheating temperature:250°C/moment

7. Contact resistance: ≤ 50mΩ

8. Insulation resistance : ≥ 100 mΩ

9. Dielectric withstand voltage: ≥1500V

10. Weight < 2g

11. Life cycles: ≥10,000 times

12. Open temp. and reset temp. Sheet
