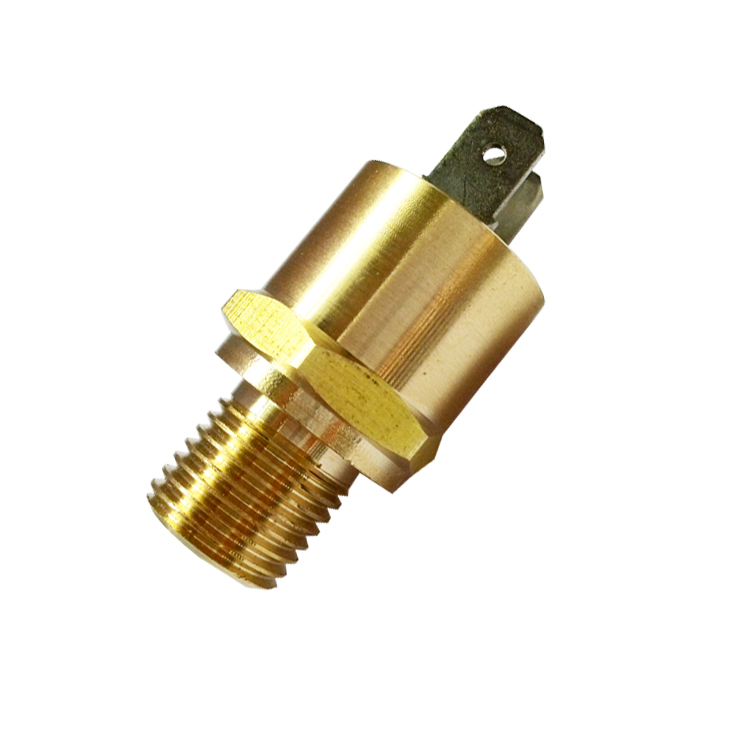

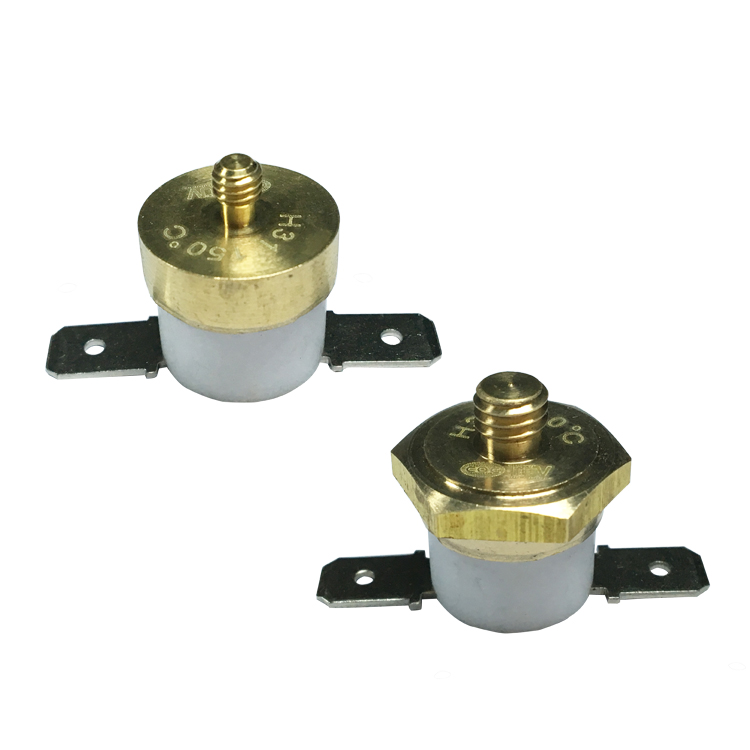

China Factory Durable Copper Head Ksd301 Bimetal Thermostat 16A 250V Temperature Controller

Products Description

Voltage & Current	AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature	0 to 25 degrees, or according to client's request.
Temperature deviation:	±3 / ±5 / ±10 degree or according to client's request
Circuit resistance	≤50mΩ (Initial value)
Insulation resistanc	AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle	≥100000 times
Contact type	Normally closed or Normally open
Two kinds of mounting bracket	movable or immovable
Terminal type	a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm b. Terminal Angle: bending angle: 0~90°C optional
House	plastic or ceramic.
Temperature sensor face	aluminum cap or copper head.
Use for	It is used as temperature control for household electric appliances and widely applied in coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc.
Certificate approved	UL CQC TUV KC ROHS

Company Profile

Dong Heng Hao Electric Co., Ltd is located in Dongguan City, Guangdong Province with very convenient transportation and favorable Geographic location.

We are specialized in developing and producing temperature controllers, thermostat, thermal protectors , temperature switch, temperature protector bimetal thermostat and other related products, our company has more than 10 senior technicians who are very familiar with this industry. Our product have been certified by CQC,TUV,UL CUL and ROHS environmental certification. Our company is always adhering to ISO 9001:2000 Quality Management System and the product quality is automatically inspected and controlled by the computer. Our annual output can reach 50,000,000 pieces and our products are widely exported to Europe, America and South Asia.
