Pump Motor H20 Thermal Protector , Temperature Controller Switch 250V 5A 10A 16A

Ask Lasest Price
Brand Name :	HENGHAO
Model Number :	H20
Supply Ability :	100000000 Piece/Pieces per Month
Price :	$0.20/pieces 1000-4999 pieces

Add to Cart

Product Details
Company Profile

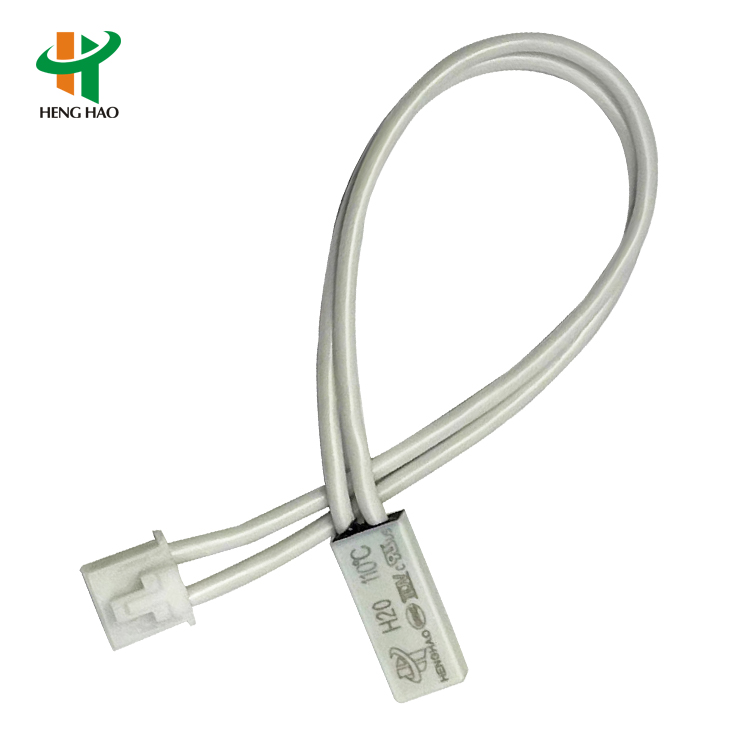

Pump Motor H20 Thermal Protector , Temperature Controller Switch 250V 5A 10A 16A

Product Description

H20,H21 series universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing,bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.

Specification

Voltage & Current	AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature	0~250℃
Recovery and action temperature difference	0 to 25 degrees, or according to client's request.
Temperature deviation:	±3 / ±5 / ±10 degree or according to client's request
Circuit resistance	≤50mΩ (Initial value)
Insulation resistance	AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle	≥100000 times
Contact type	Normally closed or Normally open
Two kinds of mounting bracket	movable or immovable
Terminal type	a. Terminal type: 187series of 4.80.5mm and 4.80.8mm, 250 series of 6.3*0.8mm b. Terminal Angle: bending angle: 0~90°C optional
House	plastic or ceramic.
Temperature sensor face	aluminum cap or copper head.
Certificate	UL: E487478 TUV: B1170792241003 CQC ceramic: CQC15002129356 CQC plastic: CQC15002129343 KC ceramic:

Packing & Delivery

Pump Motor H20 Thermal Protector , Temperature Controller Switch 250V 5A 10A 16A

Company Profile

HENG HAO SALES AND TECHNICAL SUPPORT

1)Sales philosophy:
Customer first, continuing to create value for customers.

2)Customer response:
HENGHAO has improved the sales system and lean management system, well-trained sales team members foreigners, learning and research, and strive to provide customers with timely and effective solutions and products.

3)Free samples and delivery
HENGHAO offers free standard samples and customer demand customized sample 100 or less, freight borne by the customer. Product categories covering 12 categories, thousands of models, existing stock more than 50 million. (Represented by sheet pcs)

Delivery: sample and stock, 3 to 7 days delivery; and the specific needs of a given product samples or customer order takes 4 weeks.

4)Quality Systems:
HENGHAO has improved and strict quality management system, the factory passed the ISO9001 management system, the product passed the UL, TUV CQC KC ROHS and other various safety certification. We have a comprehensive standard to achieve UL witnessed laboratory.

5)Transportation:
HENGHAO has the import and export rights recognized by the Ministry of Commerce of China, and is equipped with professional customs brokers and freight forwarding companies to deliver orders. We will ensure that the products reach customers as soon as possible through the transportation methods that customers like, including UPS, TNT, FedEx, sea, and air. For customers in Russia,Europe, the Middle East and other places, we can also use the cheap and fast China-Europe Railway to transport goods. Its freight is quite low and the goods can be delivered within a week. We also accept the shipping method designated by the customer and we will deliver the goods to the warehouse designated by the customer. All transportation costs within China will be borne by our company, and customers only need to pay the freight outside China.

6)Sales service and technical support:
Delivery provides quality test data and report quality certification, also offers a free sample test reports and follow-up
technical support for customers.
We have OEM and ODM service, can be customized according to customer special shape products.
