ksd303 bipolar thermal switch, ksd303 bipolar thermal cutout

KSD302 series bipolar thermostat is a bimetal thermostat temperature component, electric work; sheet metal in a free state, the contact is closed / disconnected state when the temperature reaches operating temperature, the bimetallic thermal stresses generated within the tables and rapid movements, open/closed contacts OFF/ON circuit, and thus play areole in temperature control. When the electrical cooling to reset temperature, the contacts automatically closed / opens, to restore normal operation.

Bipolar Thermostat technology specification:

Rating Voltage: 250V

Rating Current: 15A (resistance load), Max. Current: 20A

Action Temperature: 50~200 degree

temperature accuracy: +- 2 +- 3 +- 5 +- 10 ℃

Life-span: 10,000 cycles

Contact Resistance:

Insulation Intensity: Not to be cause electronic breakdown at AC 2 KV for 1 minute at 50 HZ between terminals and cover

Insulation resistance:

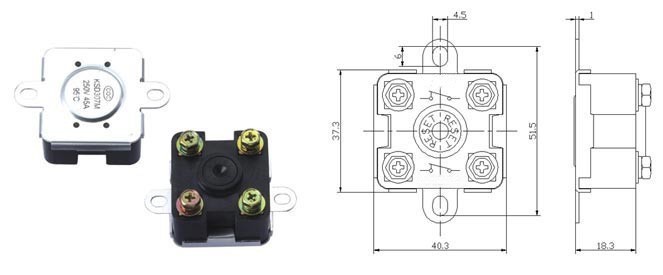

The chart of structure and dimension

Dong Heng Hao Electric Co., Ltd is located in Dongguan City, Guangdong Province with very convenient transportation and favorable Geographic location.

We are specialized in developing and producing temperature controllers, thermostat, thermal protectors , temperature switch, temperature protector bimetal thermostat and other related products, our company has more than 10 senior technicians who are very familiar with this industry. Our product have been certified by CQC,TUV,UL CUL and ROHS environmental certification. Our company is always adhering to ISO 9001:2000 Quality Management System and the product quality is automatically inspected and controlled by the computer. Our annual output can reach 50,000,000 pieces and our products are widely exported to Europe, America and South Asia.
