Bimetal motor thermal protector 17AMH

17AMH / 17AMH+PTC thermal protector’s Principle and structure

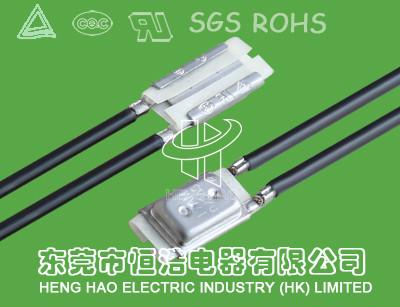

17AMH thermal protector is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

17AMH+ PTC thermal protection, in 17AMH thermal protector on the base of the PTC heating element is installed inside, due to the electrical work is not normal, causes the surrounding temperature, when the heat reaches disconnect the temperature protector, bimetallic strip quickly jump action, make the two off contact, to cut off the circuit. While at the same time due to the broken touch point on the voltage applied to the PTC heating elements, generate enough heat to keep bimetallic strip continue to jump, only when to cut off the power supply can contact closure.

17AMH / 17AMH+PTC thermal protector’s application

17AMH thermal protector is applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & several of household appliances

17AMH / 17AMH+PTC thermal protector’s Specification

1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A

2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

3. Operating temperature range: 50-180°C

4. Temperature tolerance: ±2°C, ±3°C, ±5°C

5. Reset temperature: 10~45 degrees in off temperature decline.

6. Working times: ≥ 10000 times

7. Code system

17AM XXX A / B 5 A,B,C,D………..Z

(17AMH): The number of product series

(XXX): Trip off temperature in °C Code

(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code

(A, B, C, D………..Z): Different type of connecting wire

8. Trip off temperature in °C Code

17AMH thermal protector's drawing

17AMH+PTC manual reset thermal switch's drawing
