Mini thermal protector fuse swtich BH-TB02B-B8D 250v 2a 30 to 150 degree with UL TUV CQC

BH series thermostat’s Principle and structure

BH series that can protect against over-current and over-temperature are sealed firmly, small internal resistance, no noise and reset automatically. When current through bimetal that are sensitive to temperature and current, the status of the bimetal will be changed by over-temperature or over-current to cut off circuit or switch on circuit. BH series are safer than normal protectors, as there is no temperature effect lag under condition of sudden big current.

BH series thermostat’s Specification

Electrical Rating:

DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A for BH series

DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A for BH-TB02 series

Open temperature: (30~150)±5°C; 5°C a step.

Reset temperature: 2/3 of the action temperature with tolerance of ±15°C. Reset

temperature can also be provided according to customers' requirement.

Dimension

BH series thermostat’s Application and Instruction

BH series thermal protectors ,effective reliable security protector and alarm devices, are widely used in various types 1.5 horsepower motors, lighting device, inverter welding machine, switch power, rechargeable battery pack, fluorescent lamp ballasts, portable power tools, electric appliances and other electric equipment to prevent from over-current & over-heating caused by abnormal work status. Enforced types that can withstand pressure of 3.5MPa are fit for build-in-installation of plastic coated motor.

BH series thermostat’s Code System of Product

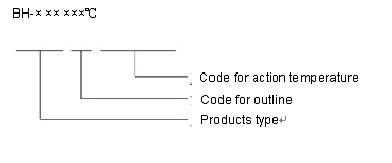

1.BH series Code system

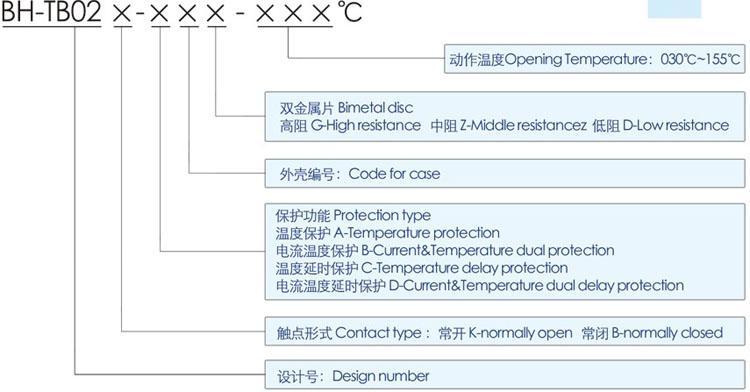

2.BH-TB02 series Code system

BH-TB02B-B8D mini thermal protector's open and reset temperature sheet

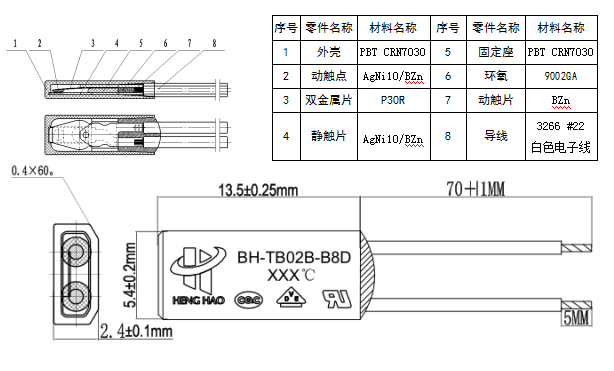

BH-TB02B-B8D mini thermal protector's shape and structure
